Prinoth has launched its new rotating crawler service, the Panther T23r, at ConExpo.
The Panther T23r carries a payload of twenty-two.5 quick tons whereas sustaining dimensions of 9.8ft (3m) broad, 10.8ft (3.175m) tall and a complete weight of 40 tons. Its steady 360-degree rotating higher construction and rounded Hardox metal dump field with telescopic cylinder allow exact materials placement in confined areas the place standard haulers can not function.
Central to the machine is Prinoth’s PowerForce undercarriage, a design underpinning greater than 20 patent purposes. The system positions eight wheels on unbiased arms, every offering seven inches of journey by hydro-pneumatic shock absorbers that routinely alter to load circumstances. This dual-setting system maintains constant journey high quality whether or not the machine is empty at 41,200 kilos or totally loaded at 85,400 kilos. Strategic weight distribution locations 60% of the load on centre wheels, bettering zero-turn functionality and lowering floor stress.
Prinoth engineers developed an rectangular monitor configuration that reduces bend factors by 50% and doubles the bend radius in comparison with standard designs, minimising power loss at every monitor revolution and rising floor contact space for improved flotation in smooth circumstances. Observe pitch precision is 10 occasions better than customary crawler carriers, with an auto-centring profile and planetary drives partaking 15 enamel concurrently versus standard single-point contact, just about eliminating de-tracking.
An computerized dual-action tensioning system constantly optimises monitor pressure primarily based on working circumstances, lowering pressure when frivolously loaded to minimise element put on and rising it routinely when further traction is required.
The rounded Hardox metal dump field promotes easy materials move and reduces carryback, notably with sticky soils and aggregates. Prinoth has moved the dump field nearer to the undercarriage centreline in contrast with conventional designs, optimising the centre of gravity and balancing masses throughout the suspension and central bearing.

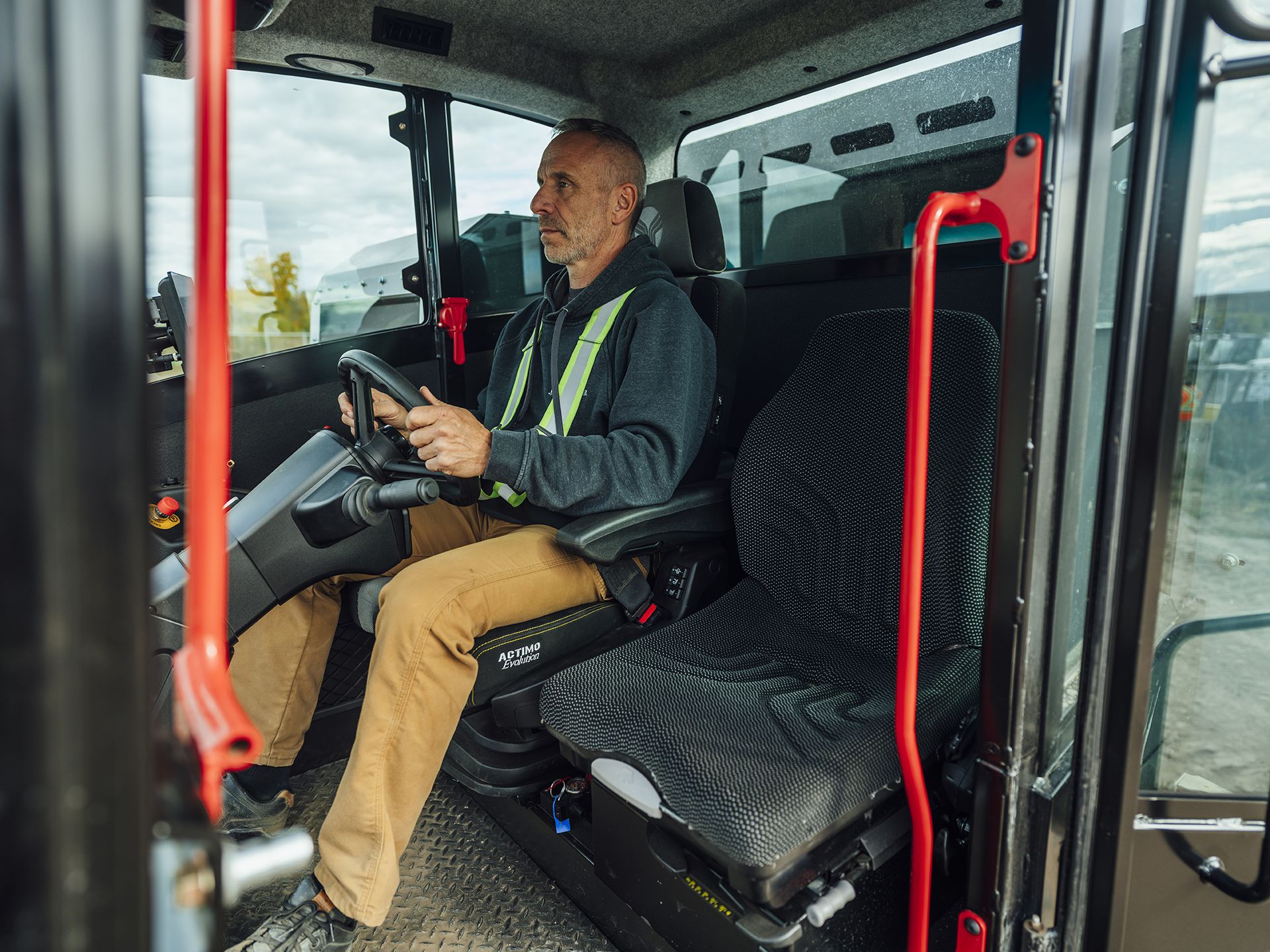

The Panther T23r contains a new cabin with a close to centre-mounted operator place that gives enhanced visibility to the fitting facet the place floor personnel sometimes work. Commonplace gear consists of an air-ride seat, 7-inch touchscreen show, ergonomic joystick controls for dump and rotate, an intuitive steering wheel and foot throttle drive system, solar visor, and cruise management. An non-obligatory buddy seat can also be obtainable.
“Prospects are pushing farther into distant, delicate and high-consequence environments,” says Frank M. Gangi, product supervisor for the Prinoth Panther. “With the Panther T23r, we got down to give them a machine that feels utterly in management on these websites, with a payload and undercarriage that lets them haul extra in fewer passes whereas defending the jobsite and the machine.”
Picture: Prinoth
